ABS-CF

Materials

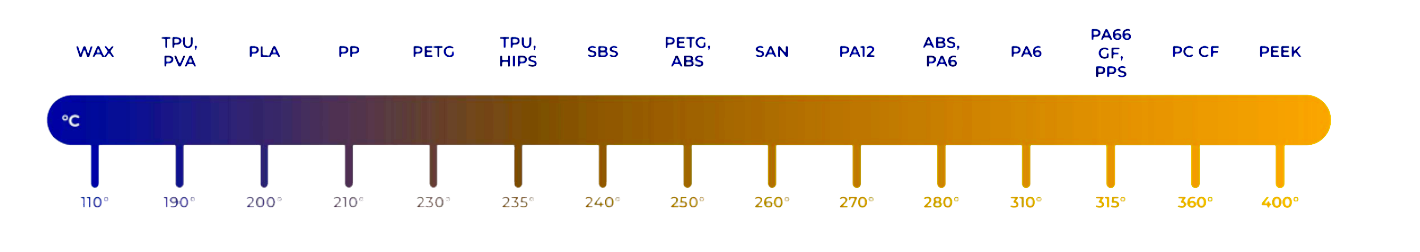

Epitum 3D printers operate at extrusion temperatures up to 430ºC, giving end users the ability to choose a material tailored to their project needs and to choose a supplier that meets their material quality and cost requirements.

Extrusion temperature:

Chemical designation: ABS
Fillers: CF 15%

MAIN FEATURES

  • High strength and stiffness
  • Low shrinkage
  • High dimensional stability
  • Excellent surface finish (optical effect)
  • Resistance to organic and inorganic salts
  • Resistance to UV light

APPLICATIONS/TARGET INDUSTRIES

  • Moulding
  • Functional prototyping
  • Large components
  • Highly stressed functional parts
  • Decorative objects

A composite material which features low shrinkage and high strength. There is an interesting optical effect — the part has a matt finish and the layers are almost invisible after printing. The model has a finished look and doesn`t require additional post-processing.

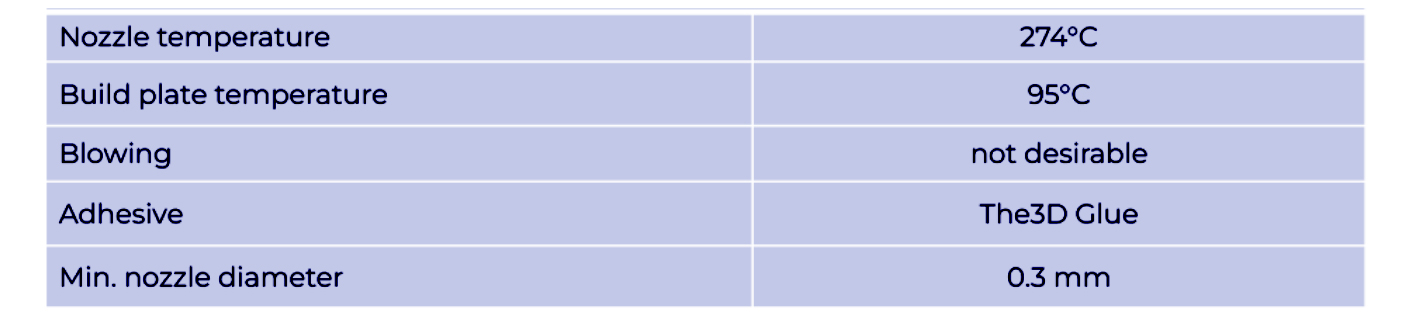

Recommended printing parameters:

Camozzi Group

TASK

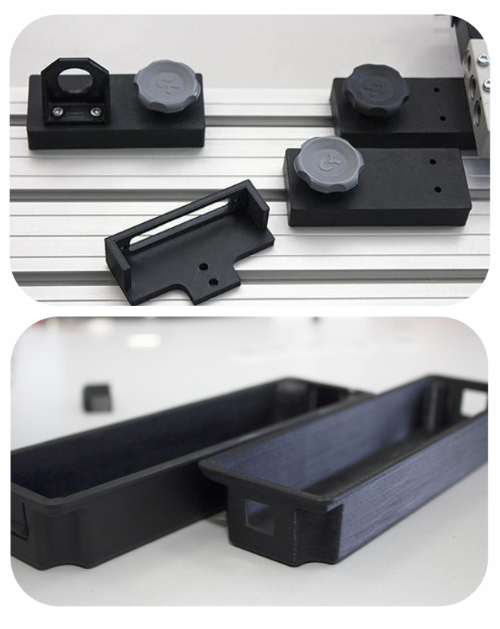

Today, Camozzi is a leader in the manufacture of pneumatic equipment and is represented all over the world. The didactic equipment department develops and manufactures training simulators and complexes in-house. It was necessary to create prototype structures, enclosures, brackets and plugs. To save the company's financial resources using 3D printing.

SOLUTION

The company uses Epitum 3D printer mainly for rapid prototyping. The equipment is part of the machine park, and there is even a special room dedicated to it. There is also an ultrasonic bath and the printer is supplied with pressurised air, which greatly reduces the time required for cooling (if necessary).

BENEFIT

In Camozzi's didactic department, any questions about new products now go through a 3D printing stage. The printer has become something of a "wild card", for the company, enabling us to print any part we need when we are short of time.

REVIEW

“The fundamental factor when choosing a 3D printer is time, because the missing part can be obtained within a few minutes. Sometimes there are situations when you urgently need to get some part, and there is no way to quickly purchase it from third-party contractors. In this case, your own printer is a great option.”
